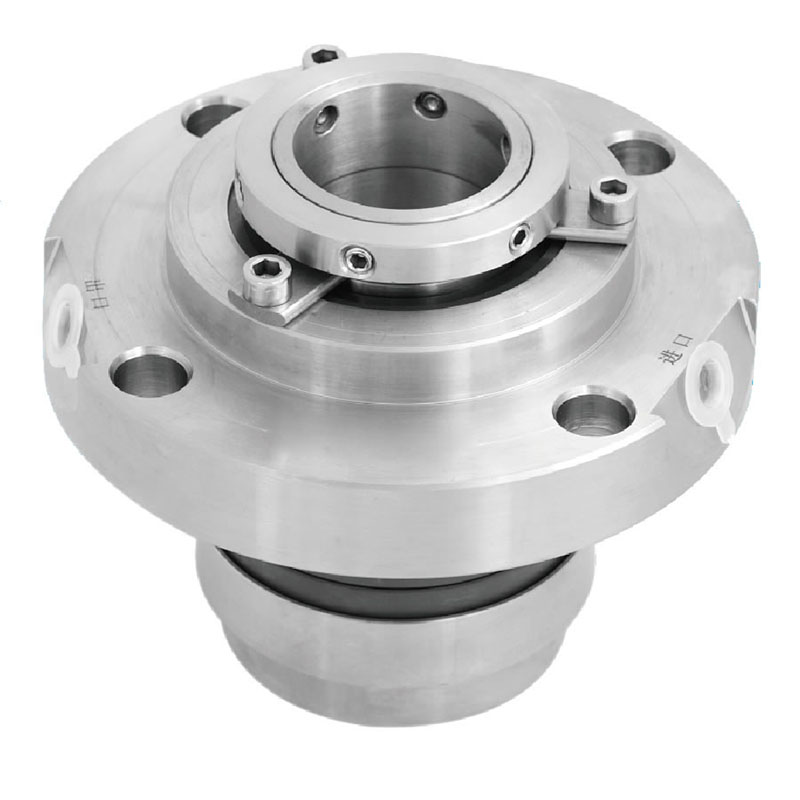

HA4104

Model description:

n      HA4104type is a simple sealing structure with anti leakage of external flushing liquid

Structural characteristics:

n      Single end containerized mechanical seal

n      Balanced type

n      Spring external, static ring compensation

n      The connecting flange is installed from the outside

n       A-type simple seal with anti leakage external flushing liquid on the atmospheric side

Parameter range:

n      Pressure: 0-1.6MPa

n      Temperature: -20~120 ℃

n      Linear speed: ≤ 10m/s

n      Solid content ≤ 18%

n       Axial allowable play amount: ± 0.3mm

n      Shaft diameter: 30-120mm

Lubrication and cooling

n      Lubricated and cooled by medium or flushing fluid

n      Rinse fluid pressure ≤ 0.05MPa

Application conditions:

Suitable for granular or crystalline media such as water, oil, acid, alkali, etc.; mainly used in pumps in general chemical processes, flue gas desulfurization, phosphate compound fertilizer, alumina, salt industry, pulp and paper, metallurgy and other industries
