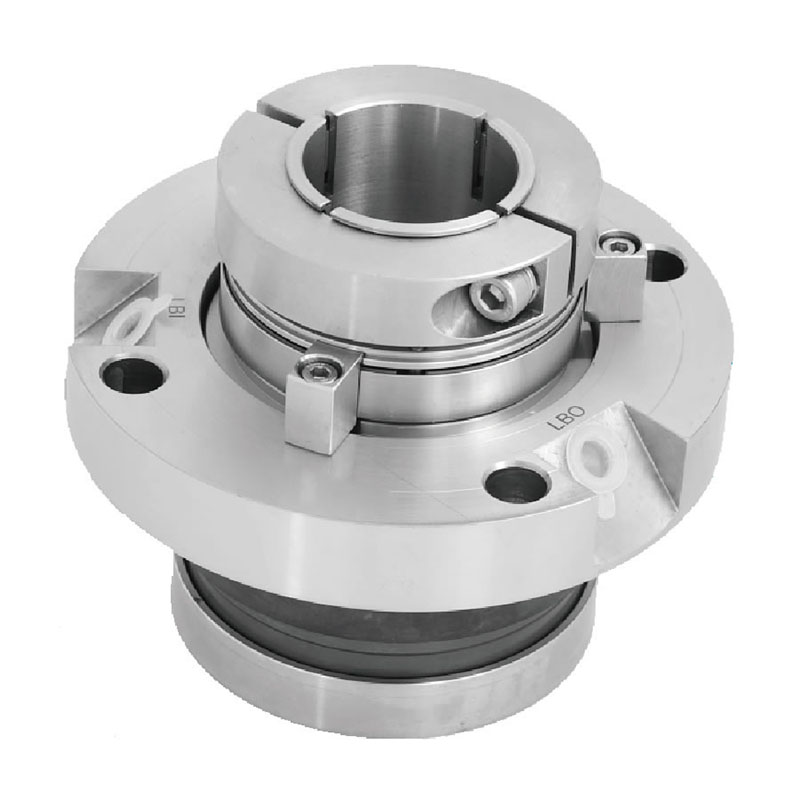

HA4104-D-C

Model description:

n      HA4104-D (C)type is a single shaft sleeve installation structure, and" C "in the model indicates a semi containerized mechanical seal

Structural characteristics:

n      Double end semi containerized mechanical seal

n      Balanced type

n      Allow for larger axial installation errors (but specify when ordering when L1 ± 3mm or more)

n      Spring external, static ring compensation

Parameter range:

n      Pressure: 0-1.6MPa

n      Temperature: -20~150 ℃

n      Linear speed: ≤ 10m/s

n      Solid content ≤ 40%

n      Axial installation automatic adjustment amount: ± 3mm

n      Shaft diameter: 30-150mm

Lubrication and cooling

n      Lubricated and cooled by medium and external buffer/isolation fluid

n      Buffer/isolation solution has a wide range of pressure applications, generally ranging from 0 to 3 bar

Application conditions:

Mainly used in granular or crystalline media in industries such as coal washing, alumina, salt industry, mining, pulp and paper, metallurgy, etc. It can also be used in media such as water, oil, acid, alkali, etc
