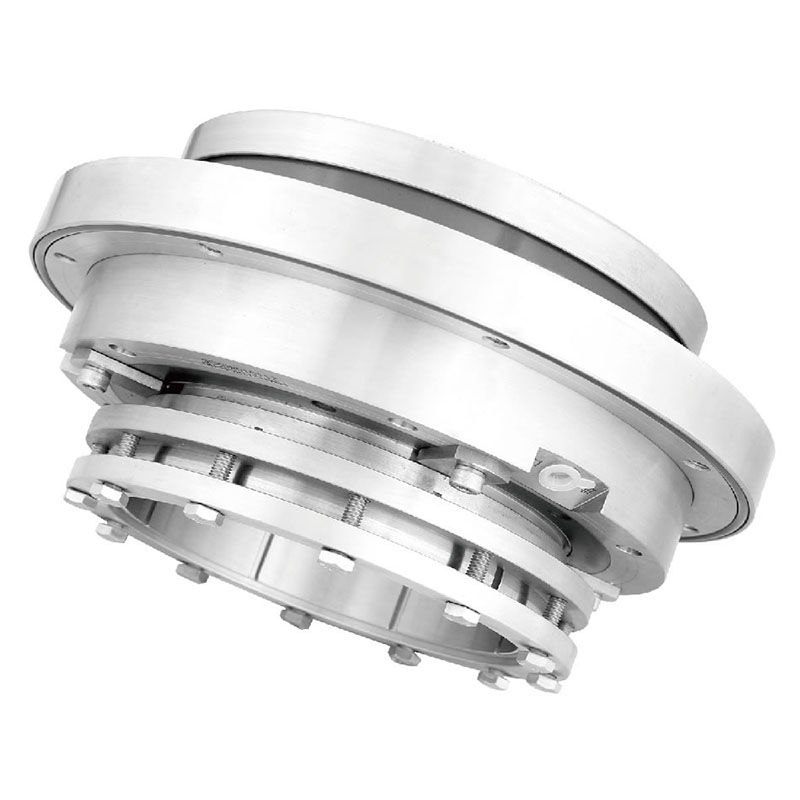

HA4105

Model description:

n      HA4105type is a simple sealing structure with anti leakage of external flushing liquid

 Structural characteristics:

n      Single end containerized mechanical seal

n      Balanced type

n      Spring external, static ring compensation

n      The connecting flange is installed from the inside

n      A-type simple seal with anti leakage external flushing liquid on the atmospheric side

Parameter range:

n      Pressure: 0-1.6MPa

n      Temperature: -20~120 ℃

n      Linear speed: ≤ 10m/s

n      Solid content: ≤ 18%

n      Axial allowable play amount: ± 0.3mm

n      Shaft diameter: 30-230mm

Lubrication and cooling

n      Lubricated and cooled by medium or external flushing fluid

n      The flushing fluid pressure should be<0.05MPa

Application conditions:

This product can completely replace the mechanical seals imported from KSB and WARMAN absorption tower slurry circulation pumps used in flue gas desulfurization devices. It can also be applied to general chemical processes, phosphate compound fertilizers, pulp and paper, pharmaceuticals, petrochemicals and other industries, suitable for granular or crystalline media such as water, oil, acid, alkali, etc
