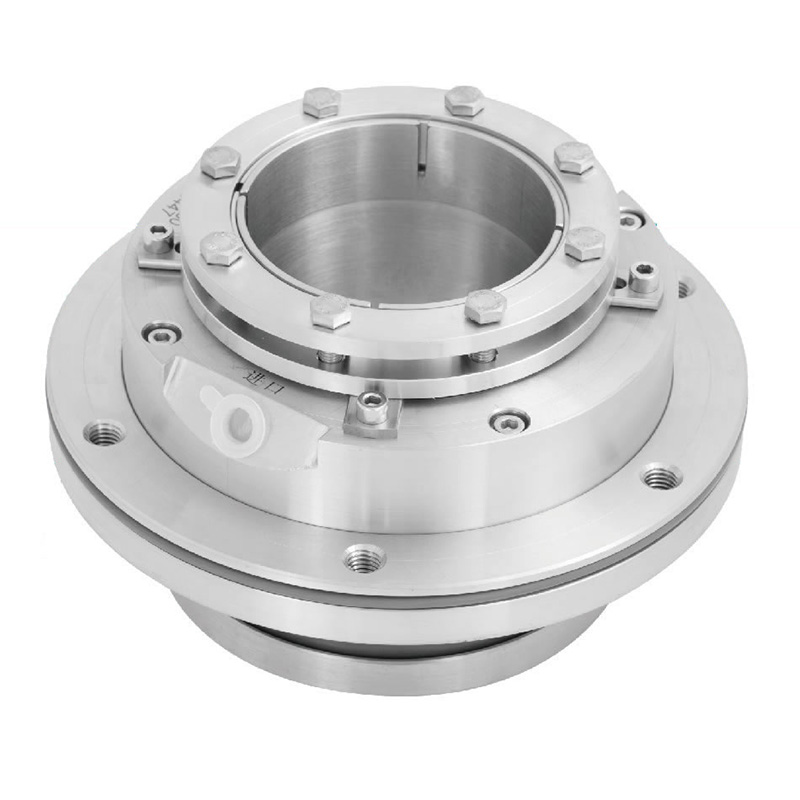

HA4108

Model description:

n      HA4108type is a simple sealing structure with anti leakage of external flushing liquid

Structural characteristics:

n      Single end containerized mechanical seal

n      Balanced type

n      Static Ring Compensation

n      Spring and medium isolation

n      The connecting flange is installed from the inside

n      A-type simple seal with anti leakage external flushing liquid on the atmospheric side

Parameter range:

n      Pressure: 0-1.2MPa

n      Temperature: -20~120 ℃

n      Linear speed: ≤ 10m/s

n      Solid content: ≤ 18%

n      Axial allowable play amount: ± 0.3mm

n      Shaft diameter: 30-150mm

Lubrication and cooling

n      Lubricated and cooled by medium or external flushing fluid

n      The flushing fluid pressure should be<0.05MPa

Application conditions:

Suitable for media containing particles or crystals such as water, oil, acid, alkali, etc.; mainly used in pumps in general chemical processes, flue gas desulfurization, phosphate compound fertilizer and other industries. This product can completely replace the ZGJ type mechanical seal on peripheral pumps of Shijiazhuang Strong Pump Industry in flue gas desulfurization devices
