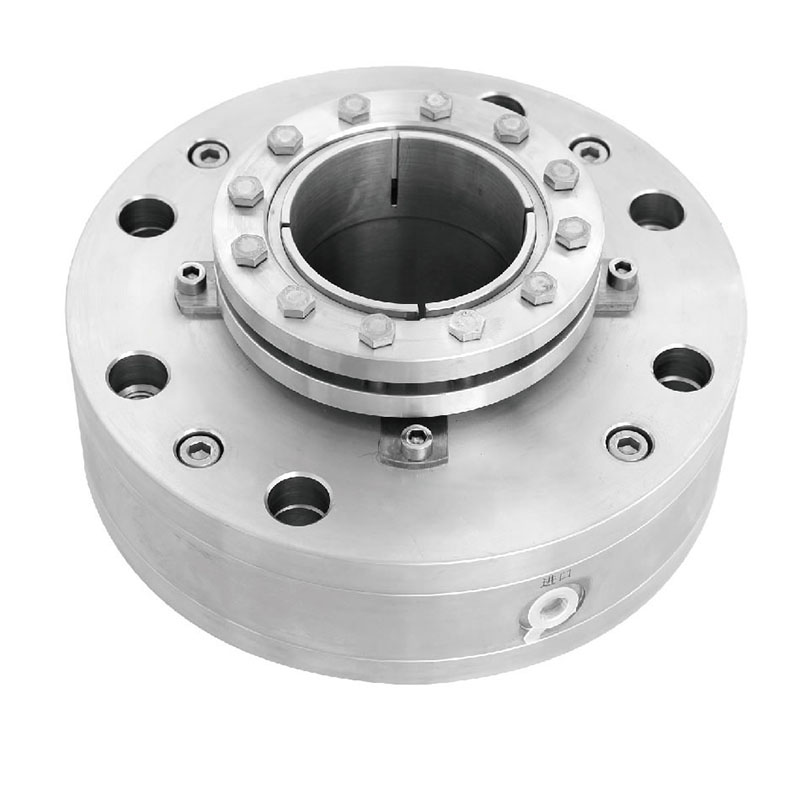

HA5001-D

Model description:

n      HA5001-DType is a medium end balanced double end face, non bidirectional pressure bearing structure setting

n      HA5001K-DType is a medium end balanced double end face with a bi-directional pressure bearing structure

Structural characteristics:

n      Double end containerized mechanical seal

n      Bi directional pressure bearing, balanced type

n      Rotating Ring Compensation

n      Spring and medium isolation

n      The connecting flange is installed from the outside

Parameter range:

n      Pressure: 0-1.6MPa

n      Temperature: -20~120 ℃

n      Linear speed: ≤ 12m/s

n      Solid content ≤ 40%

n      Axial allowable play: ± 0.2mm

n      Shaft diameter: 30-150mm

Application conditions:

Mainly used in industries such as salt industry, alumina, flue gas desulfurization, phosphate compound fertilizer, pulp and paper, metallurgy, etc. with crystallization and slurry conditions. It is also suitable for media such as water, oil, acid, alkali, etc
