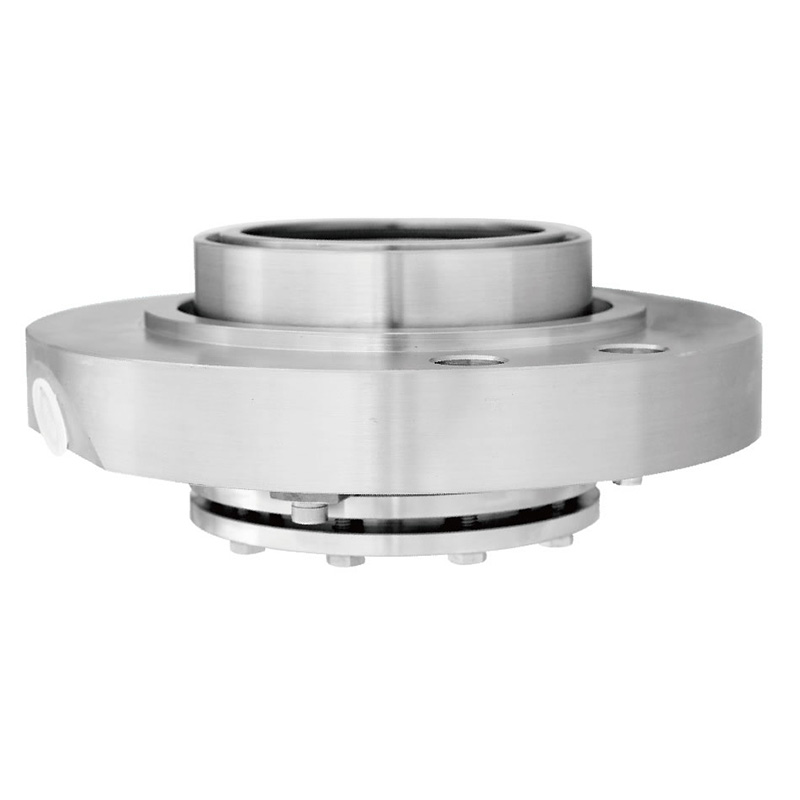

HMB9J

Model description:

n      HMB9JType is a wave spring container structure, which is made by adding connecting flanges and shaft sleeves on the basis of the foreign brand product HJ92 type

Structural characteristics:

n      Single end containerized mechanical seal

n      Balanced type

n      Rotate in any direction

n      Rotating Ring Compensation

n      Wave spring, spring isolated from medium

Parameter range:

n      Pressure: 0-2.5MPa

n      Temperature: -40~150 ℃

n      Linear speed: ≤ 10 (20) m/s

n      Axial allowable play amount: ± 0.3mm

 Application conditions:

Suitable for pumps containing solid particles and high viscosity media, mainly used in general chemical processes, petrochemicals, pharmaceuticals, food, pesticides, sewage treatment and other industries
