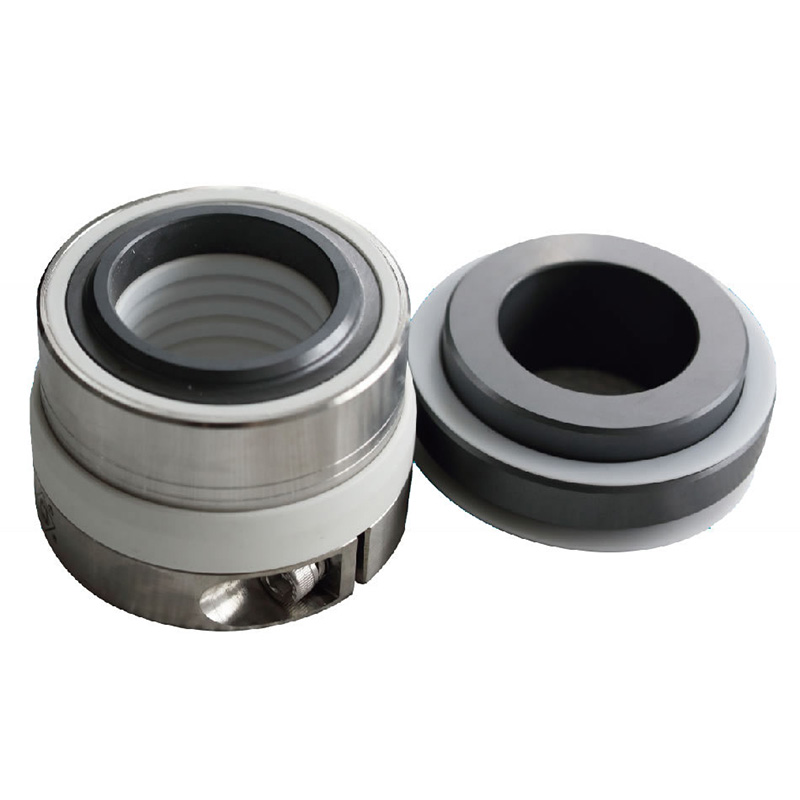

WB2F/WB2AF

Model Description:

WB2F and WB2AF are reinforced structures of WB2 and WB2A

Structural characteristics:

n      Single end sealing of polytetrafluoroethylene corrugated tube structure

n      The sealing surface can be embedded with hard wear-resistant and corrosion-resistant materials filled with polytetrafluoroethylene

n      Rotation direction unrelated to the axis

n      Exterior mounted and easy to install

n      Spring and medium isolation

n      Strong radial runout compensation capability

n      Using screws to transmit torque, more solid and reliable

n      Equipped with installation indicator line

n      There are various forms of static rings

Parameter Range:

n      Pressure: 0-0.5MPa

n      Temperature: -20~100 ℃

n      Linear velocity: ≤ 10m/s

n      Solid content: ≤ 2% Non hard suspended particles

Application conditions:

Mechanical seals for acid resistant pumps are widely used in fluorine lined pumps, plastic pumps, and ceramic pumps. The use of embedded structure on the sealing surface can expand its range of application. Used in situations where the sealing surface resistance torque is high and WB2 and WB2A cannot meet it.
