208

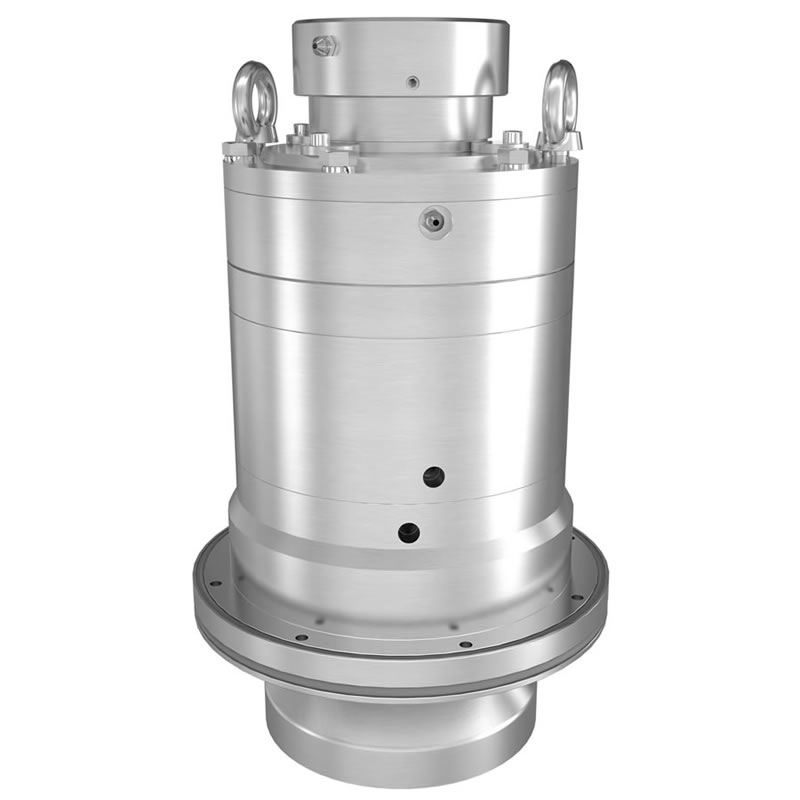

Model Description:

The medium end of the 208 type mechanical seal shaft sleeve is connected to a metal bellows, which is suitable for sterile working conditions;

The medium end of the 208GY mechanical seal shaft sleeve adopts a combination seal, which is not suitable for sterile level working conditions;

Structural features:

Ø Double end containerized

Ø Any rotation direction

Ø Set bearings

Ø Adopting a unique structure, the stirring shaft can perform axial reciprocating motion while rotating.

When used in pharmaceutical equipment that strictly prohibits sealing liquid contaminated materials, nitrogen can be used instead of sealing liquid cooling, and the friction pair will operate dry at this time.

Set up collection sets according to hygiene requirements and configure flushing interfaces

Parameter Range:

Pressure: Vacuum~0.4 (1.6) MPa Temperature: -20~130 ℃

Linear velocity: ≤ 1 (3) m/s Axis diameter: 30-200mm

Journey: 0-500mm

Note: The data in parentheses above are wet lubrication design parameters.

Application industry:

Mainly used in drying machines for industries such as pharmaceuticals and chemicals, it can also be used in other reaction vessels.
