XJ

Model Description:

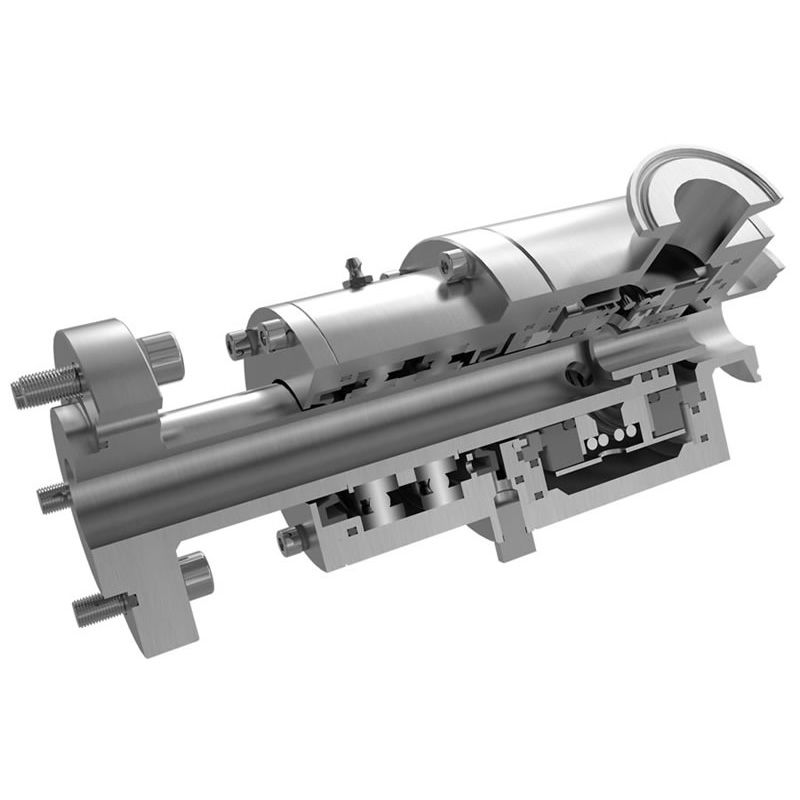

The XJ type is a dynamic static conversion seal for medium inlet and outlet directions, equipped with two sets of bearings.

Structural features:

Ø Double end containerized

Ø Any rotation direction

Ø Set up two sets of radial force bearing

Ø The outer surface has been polished

Parameter Range:

Pressure: 0-0.6MPa Temperature: -20~120 ℃

Linear velocity: ≤ 2m/s Axis diameter: 30-120mm

Application industry:

Rotary joint is a rotating mechanical sealing device that is used to transport and remove heat transfer media for fixed pipelines and rotating rollers. The heat transfer media used in rotary joints include steam, water, heat transfer oil, hydraulic oil, and coolant. Rotary joints are widely used in industries such as cigarettes, pharmaceuticals, and papermaking.
