ESD

Model Description:

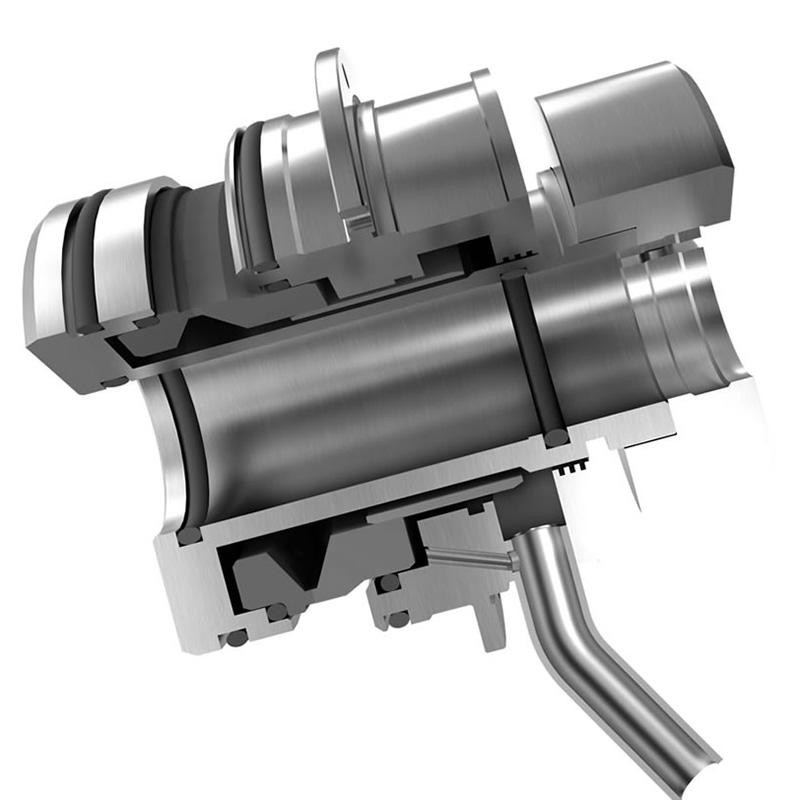

ESD type is a mechanical seal for side and horizontal agitators, and instructions for ordering bearings and supports are required.

Structural features:

Ø Single end containerized

Ø Any rotation direction

Ø Equipped with radial force bearing

Ø Static ring compensation, external spring

Unique structure suitable for working conditions containing solid suspended particles

Ø Can meet the requirements of online maintenance of mechanical seals

Parameter Range:

Pressure: 0-0.6MPa Temperature: -20-75 ℃

Linear velocity: ≤ 2m/s Axis diameter: 40-120mm

Application industry:

Equivalent to replacing the original imported mechanical seal on the EKATO side mixer from Germany. It is mainly used in flue gas desulfurization devices and can also be applied to side and horizontal agitators containing abrasive suspended solid particles or easily crystallized solution media.
