HMJM

Model Description:

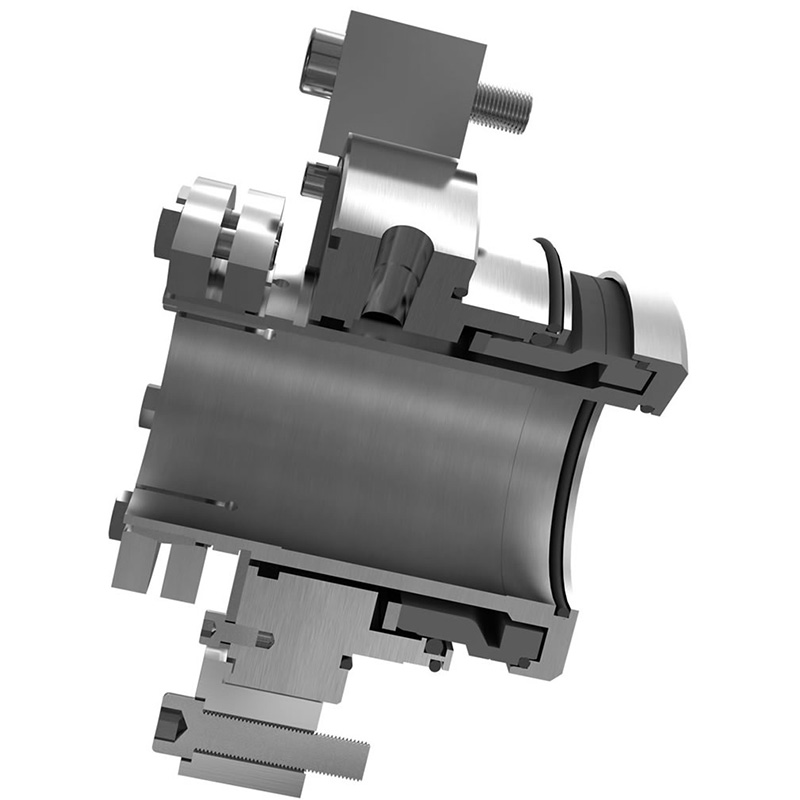

HMJM type is a single end containerized mechanical seal for side mixers

Structural features:

Ø Single end containerized

Ø Any rotation direction

Ø Static ring compensation, external spring

Ø Small external dimensions, suitable for situations where the diameter of the sealing installation part of the mixer is small

Ø Can meet the requirements of online maintenance of mechanical seals

Unique structure suitable for working conditions containing solid suspended particles

Parameter Range:

Pressure: 0-0.6MPa Temperature: -20-75 ℃

Linear velocity: ≤ 2m/s Axis diameter: 40-120mm

Lubrication and cooling

No external flushing solution is used, relying entirely on the medium inside the tank for lubrication and cooling.

Application industry:

Equivalent to replacing the original imported mechanical seal on the SHARPE side mixer imported from the United States. It is mainly used in flue gas desulfurization devices and can also be applied to side and horizontal agitators containing abrasive suspended solid particles or easily crystallized solution media.
