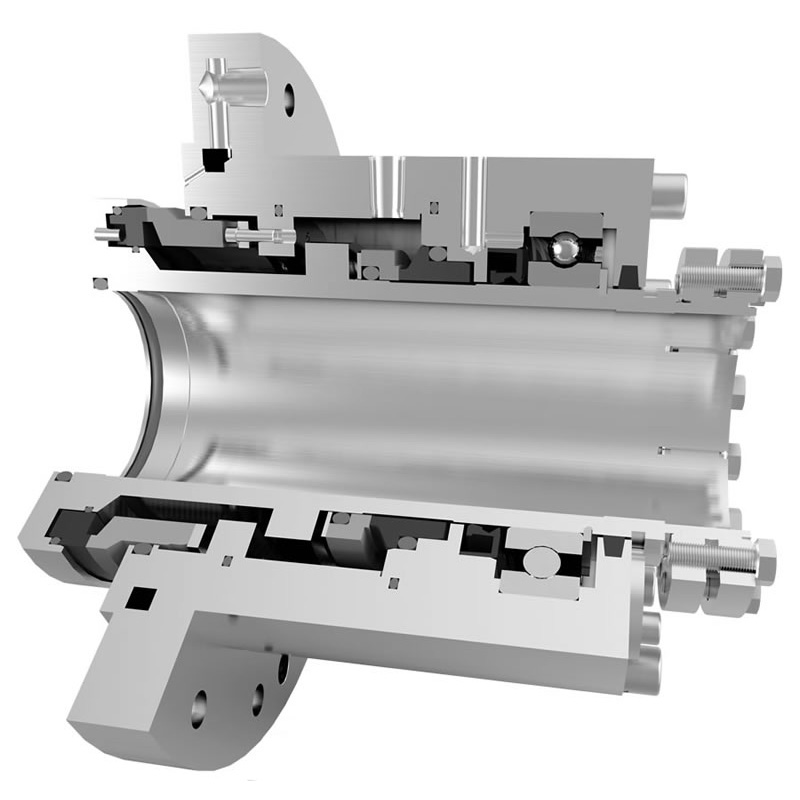

HMJBQ

Model Description:

The HMJBQ type is a double end containerized mechanical seal for side and horizontal mixers, with bearings installed on the mechanical seal.

Structural features:

n      Single end container type

n      Arbitrary rotation direction

n      Equipped with radial force bearing

n      Static ring compensation, external spring

n      Set up flushing liquid interface

n      Unique structure suitable for working conditions containing solid suspended particles

Parameter Range:

n      Pressure: 0-1.0MPa

n      Temperature: -20~120 ℃

n      Linear velocity: ≤ 2m/s

n      Shaft diameter: 30-200mm

Application industry:

It is mainly used in flue gas desulfurization devices and can also be applied to side and horizontal agitators containing abrasive suspended solid particles or easily crystallized solution media.
