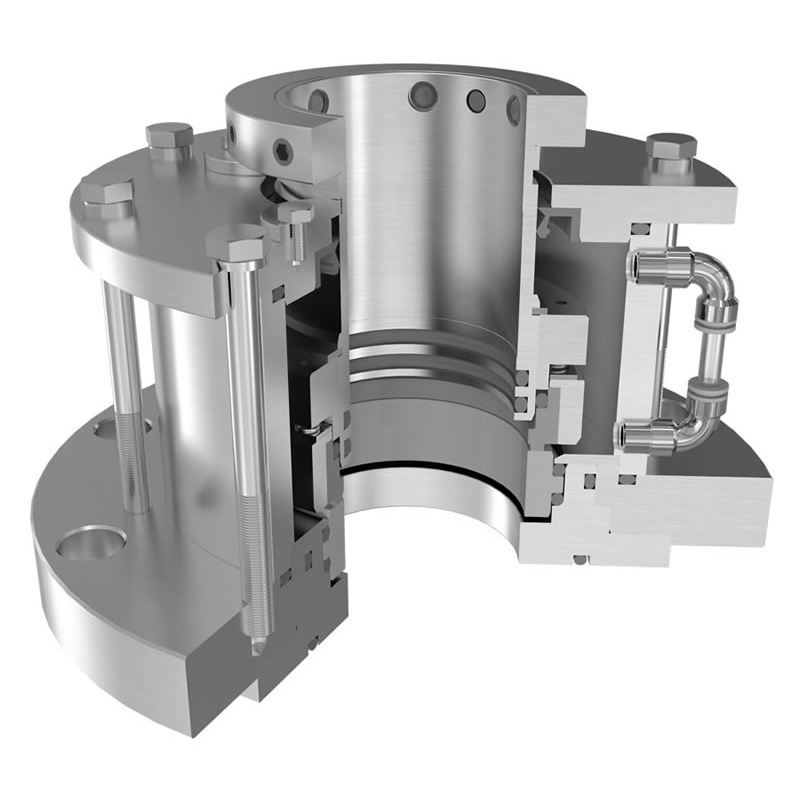

A1302

Structural features:

Ø Single end loose type

Ø Any rotation direction

Ø Combination installation, simple and convenient

Ø If requested, other size designs can be provided

Ø A1302 is an upgraded version of the standard 204 (HG5-754-78)

Parameter Range:

Pressure: Vacuum~0.6MPa        Temperature: -20~150 ℃

Linear velocity: ≤ 3m/s                Axis diameter: 30-200mm

Application industry:

Suitable for water, oil, acid, alkali, small amounts of suspended particles and crystallization media, mainly used in reaction vessels in chemical, pharmaceutical, pesticide and other industries.

According to the HG5-754-78 standard connection size table:
