A1003

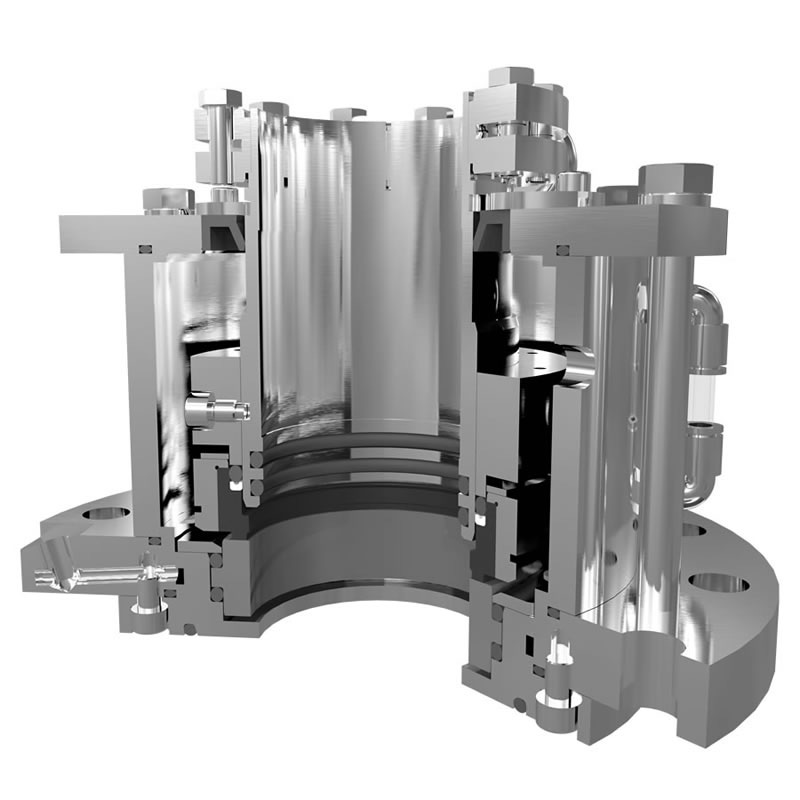

A1003 mechanical seal Type A1003 Mechanical seal

Compliant with standards: HG5-754-78, DIN28138, etc

Model Description:

A1003 type has no bearings, while A1003B type has bearings.

Structural features:

Ø Single end containerized

Ø Any rotation direction

Ø Can be made into sanitary grade for use in the pharmaceutical industry

Ø Can be designed separately according to the installation size required by the user

Parameter Range:

Pressure: Vacuum~0.6MPa

Temperature: -20~120 ℃ (when ≥ 80 ℃, the liquid inside the sealed box needs to flow to reduce heat)

Linear velocity: ≤ 3m/s

Industry:

Used in reaction vessels with materials such as water, oil, and generally corrosive media.

According to the HG5-754-78 standard connection size table:
