A1033

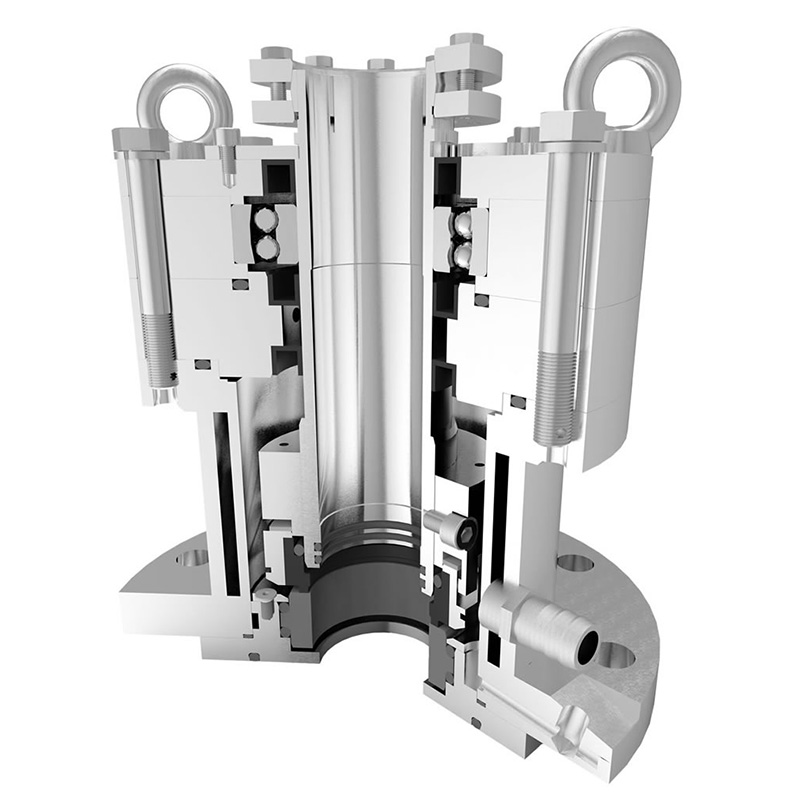

A1033 mechanical seal Type A1033 Mechanical seal

Compliant with standards: HG5-754-78, etc

Model Description:

A1033 type without bearings, A1033B type with bearings.

Structural features:

Ø Single end containerized

Ø Any rotation direction

Ø Can be made into sanitary grade for use in the pharmaceutical industry

Ø Can be designed separately according to the installation size required by the user

Ø With cooling jacket

Parameter Range:

Pressure: Vacuum~0.6MPa        Temperature: -20~150 ℃

Linear velocity: ≤ 3m/s                Axis diameter: 30-200mm

Industry:

Used in reaction vessels with materials such as water, oil, and generally corrosive media.

According to the HG5-754-78 standard connection size table:
