AM2033B AM2063B

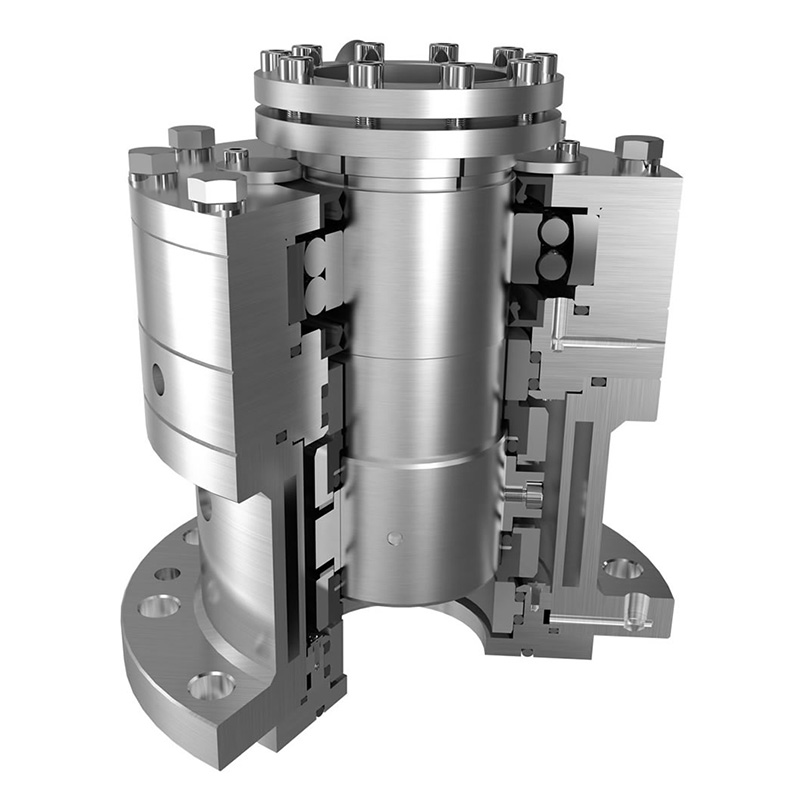

AM2033B AM2063B mechanical seal Type AM2033B AM2063B Mechanical seal

Compliant with standards: HG5-754-78, HG/T2098-91, HG/T2098-2011, etc

Model Description:

Ø AM2033 type mechanical seal for medium and low pressure kettle (agitator) with jacket cooling

Ø The AM2063 type is a mechanical seal for medium and low pressure kettles (stirrers) with flange cooling added to the AM2033 type, and its operating temperature is higher than that of the AM2033 type

Ø Model B is designed with bearings, and model F is designed for dry operation

Ø The AM2033B model is an upgraded version of the standard 207 (HG5-754-78)

Structural features:

Ø Double end containerized

Ø Any rotation direction

Ø Improved design can be used in the pharmaceutical and food industries with hygiene requirements

Ø Can provide corresponding design according to the installation size required by the user

Parameter Range:

Pressure: Vacuum~2.5 (4.0) MPa

Temperature: -40~250 ℃

Linear velocity: ≤ 3m/s

Industry:

Suitable for water, oil, acid, alkali, organic solvents, small amounts of suspended particles and crystalline, flammable, explosive, toxic media, mainly used in reaction vessels in chemical, smelting, pharmaceutical, food, pesticide and other industries.
