AH2033B AH2063B

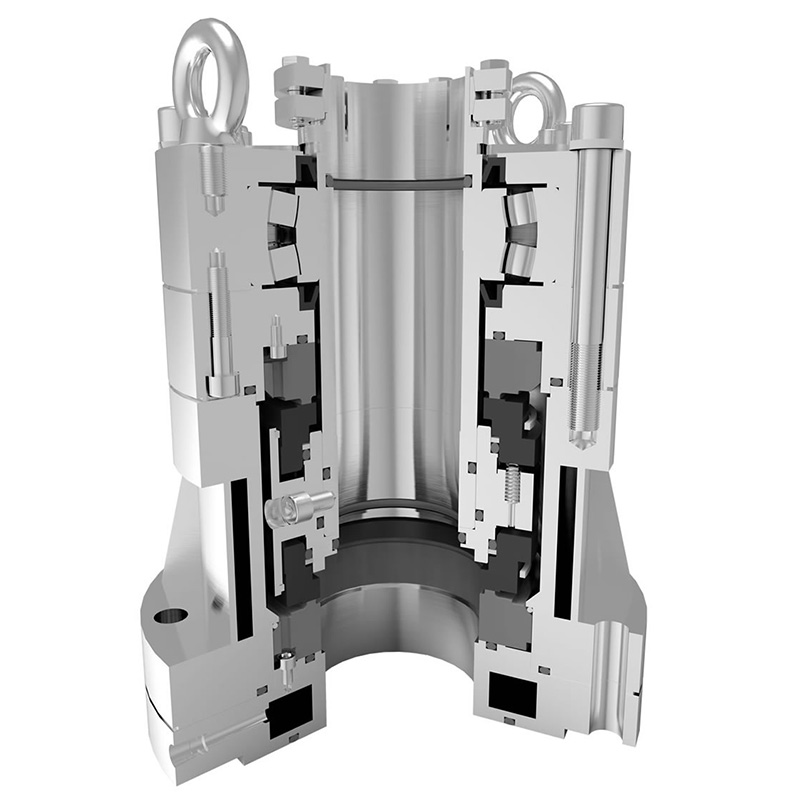

AH2033B AH2063B mechanical seal Type AH2033B AH2063B Mechanical seal

Compliant with standards such as HG/T2098-2011

Model Description:

Ø AH2033 type is a mechanical seal used for high-pressure reactors (stirrers) with jacket cooling

Ø AH2063 type is a mechanical seal with flange cooling on the basis of AH2033 type, and its operating temperature is higher than that of AH2033 type

Ø The model with B at the back has bearing settings

Structural features:

Ø Double end containerized

Ø Any rotation direction

Ø Improved design can be used in the pharmaceutical and food industries with hygiene requirements

Ø Can provide corresponding design according to the installation size required by the user

Parameter Range:

Pressure: 0-6.3MPa Temperature: -40~250 ℃

Linear velocity: ≤ 3m/s Axis diameter: 30-200mm

Industry:

Mainly used in high-pressure reactors in industries such as chemical, smelting, pesticide, and petrochemical.
