Model Description:

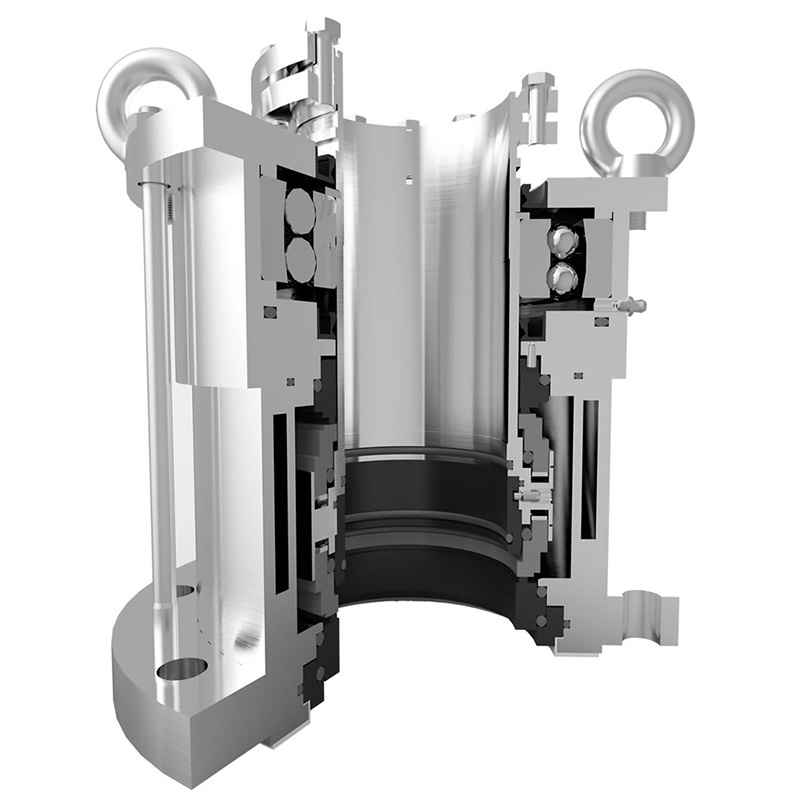

Ø A2031 machine seal is a reinforced type in terms of abrasion resistance, with non-metallic structure used in the medium contact area, and excellent wear and corrosion resistance.
Ø Liquid lubrication seal
Ø Use of machine seal bearings
Ø During installation, it is strictly prohibited to strike or collide
Structural features:
Ø Double end containerized
Ø All contact areas of the medium are made of non-metallic materials
Ø Any rotation direction
Ø Can provide corresponding design according to the installation size required by the user
Parameter Range:
Pressure: 0-1.6 MPa Temperature: -20~200 ℃
Linear velocity: ≤ 3m/s Axis diameter: 50-160mm
Industry:
Mainly used in highly corrosive reaction vessels in industries such as chemical and pharmaceutical.
