212

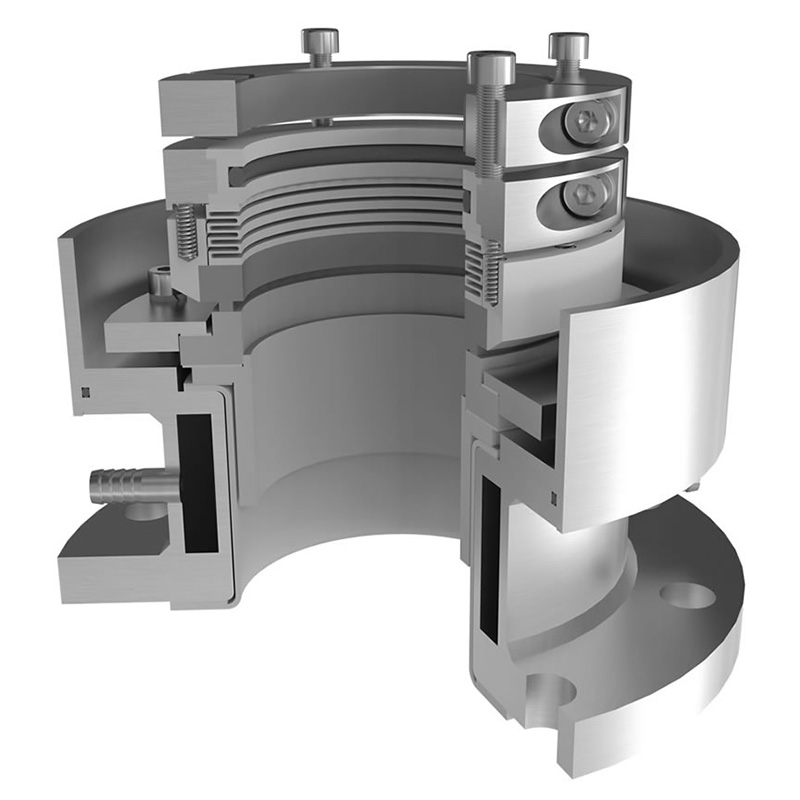

Structural characteristics:

Ø Single end sealing of PTFE corrugated pipe

Ø Rotation direction independent of the axis

Ø Able to adapt to mixing shafts with large radial runout

Parameter Range:

Ø Pressure: Vacuum~0.4MPa

Ø Temperature: -60~150 ℃ (when ≥ 80 ℃, the cooling jacket needs to be cooled with water)

Ø Linear speed: ≤ 3m/s

Ø Solid content: ≤ 5% polymer suspended particles

Application industry:

Mainly used in glass lined reaction vessels. It can also be used in other reaction vessels in industries such as chemical, pharmaceutical, pesticide, and water treatment.

There are multiple standard installation sizes to choose from:
